Big Bag Stations

Bigbag-gestell_001Bigbag-gestell_001
Big Bag Station with forklift traverse
Bigbag-gestell_003Bigbag-gestell_003

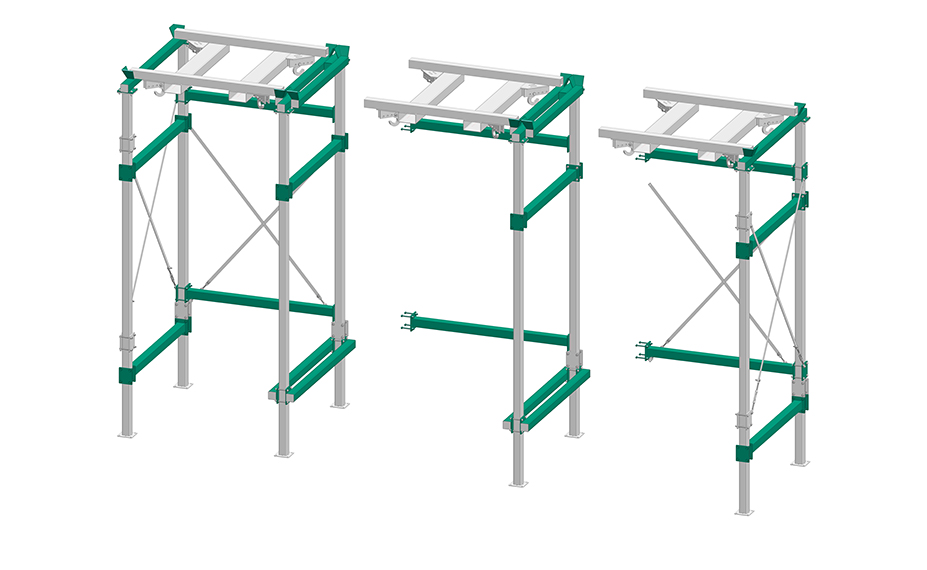

Basic frame with forklift traverse and extension frames
Bigbag-gestell_002Bigbag-gestell_002
Big Bag Station with crane arm
Bigbag-gestell_004Bigbag-gestell_004

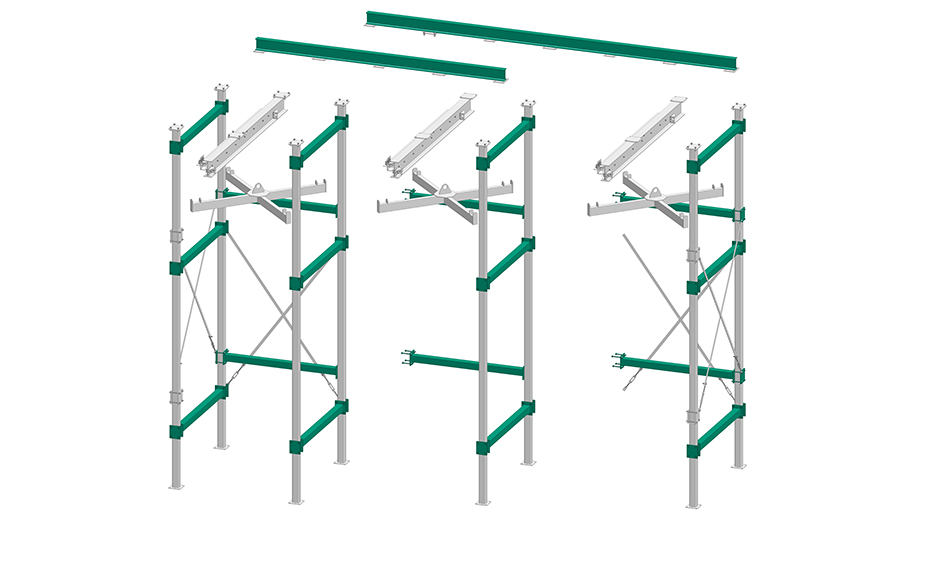

Basic frame with crane arm and extension frames
Bigbag-gestell_005Bigbag-gestell_005
Filling station
Bigbag-gestell_006Bigbag-gestell_006

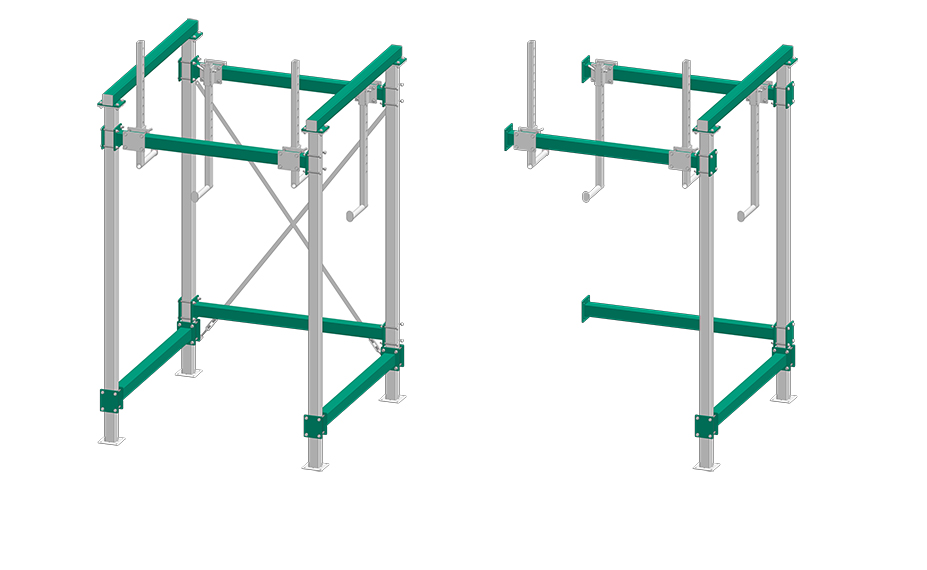

Filling station and extension frame

Any Questions?

AF
Andreas Frerk
Phone: +49(0)2521.8707-69
email: frerk@horstkoetter-tornado.de
Construction, Technology

Big Bag Stations for filling and emptying

Our modular Big Bag Stations for filling and emptying of bulk materials of any kind have already established themselves in many industries (e.g. agriculture, breweries, plastics technology). The simple assembly by means of a clamping system in combination with a stable base frame made of hollow profiles enable a cost-effective construction with very high stability. Both Big Bag emptying stations and Big Bag filling stations can be supplied. Forklift traverses or crane arms serve as loading options.

The practical design provides a highly efficient method for reliable filling, storage, transportation and emptying of your products. To save as much space as possible when placing many Big Bag stations in a row, we have developed multiple racks that can be extended as required. Extensive accessories provide interfaces to other conveying equipment for filling or emptying without any problems. Through a multitude of projects we already have standard solutions for the integration of our tube chain conveyors, trough and tube augers as well as many other products from our portfolio.

Product overview

Technical data

Dimensions [WxD] in mm
Frame height in mm
Capacity in kg
Big Bag Station
Filling station
1400 x 1400
1660 x 1580
3650
2910*
up to 1000
customised
* can be individually adjusted in height
